Concealed Fire Sprinkler

Name: Concealed Fire Sprinkler
Brand: RAPIDROP INDIA
Price: 1000.0 INR
Availability: InStock

1000.0 INR/Piece

Get a Price/Quote

Product Details:

Operating Pressure 0.35 - 1.2 MPa
Working Temperature 68C (Standard)
Coating Type Chrome or White Polyester Finish
Features Fast Response, Aesthetic Concealment, Corrosion Resistant
Connectivity Type Standalone
Technology Automatic Heat Response
Shape Round
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Concealed Fire Sprinkler Price And Quantity

Minimum Order Quantity 100 Number
Price Range 700.00 - 1000.00 INR/Piece
Price 1000.0 INR/Piece

Concealed Fire Sprinkler Product Specifications

Mounting Type Flush Mounted
Fire Class A, B, C
Coverage Area 16-18 sqm
Technology Automatic Heat Response
Shape Round
Connectivity Type Standalone
Capacity Single Activation Per Fire Event
Application Fire Protection in Commercial and Residential Buildings
Installation Type Ceiling Mounted
Diameter 15 mm
Control Type Concealed Sprinkler Head
Fire Extinguisher Type Automatic Sprinkler
Max Flow Rate 85 L/min
Operating Pressure 0.35 - 1.2 MPa
Pressure 12 Bar
Working Temperature 68C (Standard)
Features Fast Response, Aesthetic Concealment, Corrosion Resistant
Coating Type Chrome or White Polyester Finish

Concealed Fire Sprinkler Trade Information

Delivery Time 2-3 Days
Sample Available No
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Main Domestic Market All India
Certifications UL listed FM approved

Product Description

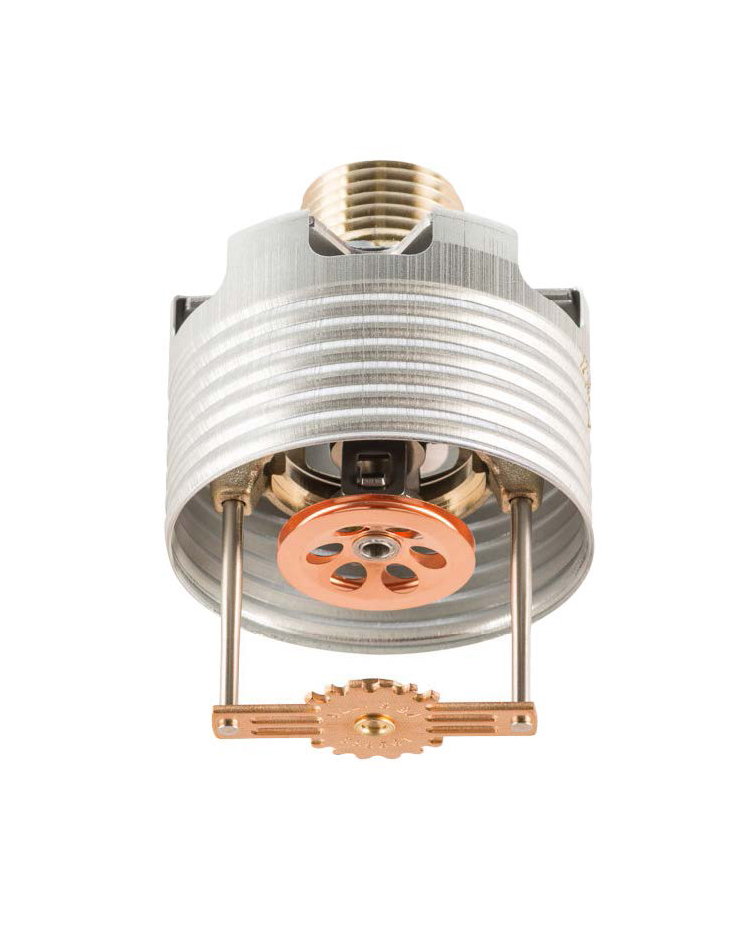

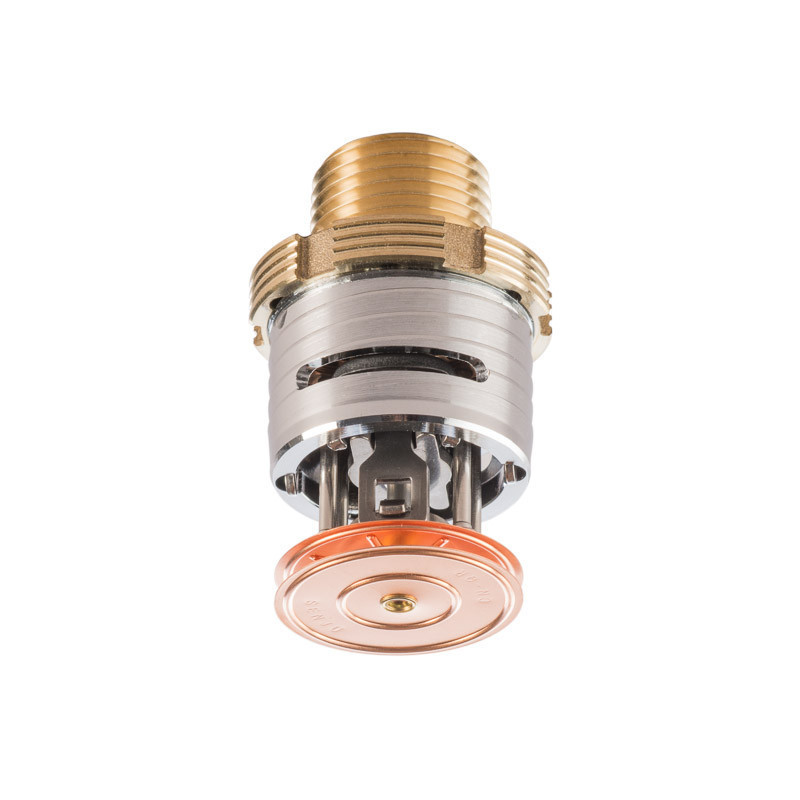

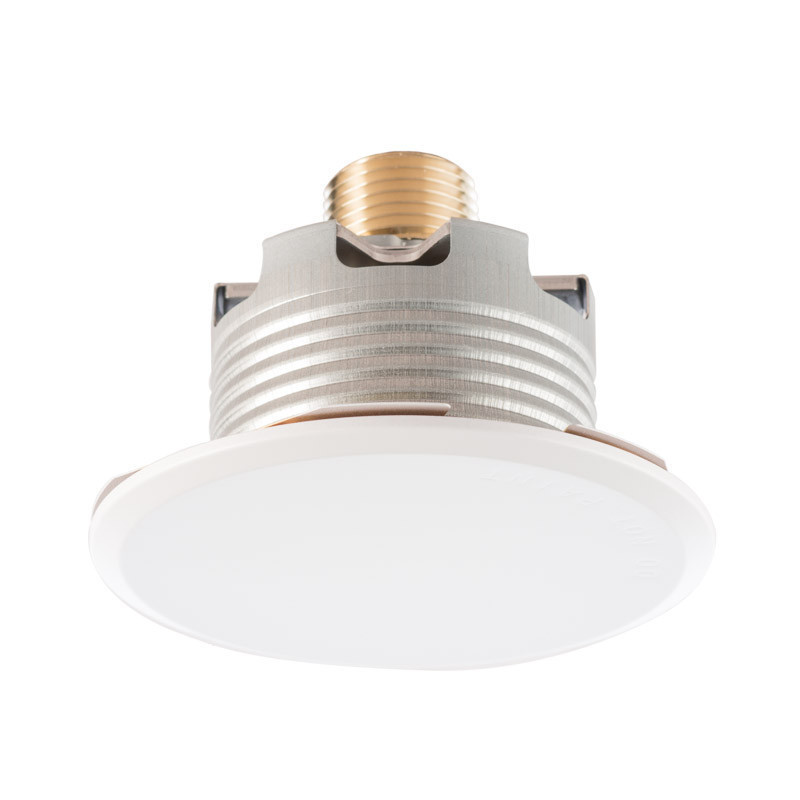

The Model RD106 Commercial Flat Concealed Sprinklers are automatic sprinklers of the compressed fusible solder type. The Cover Plate Assembly hides the Deflector, Heat Responsive Element etc., which is concealed above the ceiling. The cover plate has a flat profile, and its diameter is 68mm (2-5/8 inch). The push-on or thread-on, thread-off design of the concealed cover plate assembly allows for easy installation of the cover plate.

Discreet and Effective Fire Protection

Enjoy superior fire safety without compromising aesthetics. This concealed fire sprinkler features a flush-mounted cover plate that can be painted to match your ceiling, integrating smoothly into any commercial or residential decor. Its fast response ensures swift activation in emergency situations, protecting both property and occupants.

Reliable Performance with High Coverage

Engineered for dependable operation, this sprinkler provides extensive coverage of up to 16-18 sqm and supports a maximum flow rate of 85 L/min at pressures up to 12 Bar. Its advanced automatic heat response activates precisely at 68C, making it suitable for diverse applications like restaurant kitchens, offices, and lobbies.

FAQs of Concealed Fire Sprinkler:

Q: How does the concealed fire sprinkler activate in case of fire?

A: The sprinkler activates automatically when the red liquid in the glass bulb reaches 68C. Heat from the fire causes the bulb to rupture, instantly releasing water through the concealed head to suppress the flames.

Q: What are the primary benefits of using this concealed fire sprinkler?

A: Key benefits include fast fire response thanks to its low RTI, aesthetic integration with ceilings via a paintable cover plate, corrosion-resistant brass construction, and compliance with UL and FM standards for assurance in safety and reliability.

Q: Where can this concealed fire sprinkler be installed?

A: It is ideally suited for false ceilings in both residential and commercial settings, such as restaurant kitchens, hotel lobbies, office spaces, and apartment complexes, ensuring broad applicability in modern buildings.

Q: What maintenance is required for this fire sprinkler?

A: The sprinkler requires minimal maintenance. An annual inspection is recommended to ensure ongoing functionality and compliance with safety standards.

Q: When should the concealed fire sprinkler be used?

A: It should be installed in any environment requiring discreet fire suppression, especially where ceiling aesthetics are important, and rapid response to Class A, B, or C fires is essential.

Q: What is the typical process for installing this sprinkler head?

A: Installation involves ceiling mounting in a pendent orientation (downward release). The flush-mounted design ensures the cover plate sits level with the ceiling, and the finish can be matched to the surrounding decor. A qualified professional should perform the installation to ensure proper operation and compliance with standards.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Fire Sprinkler' category

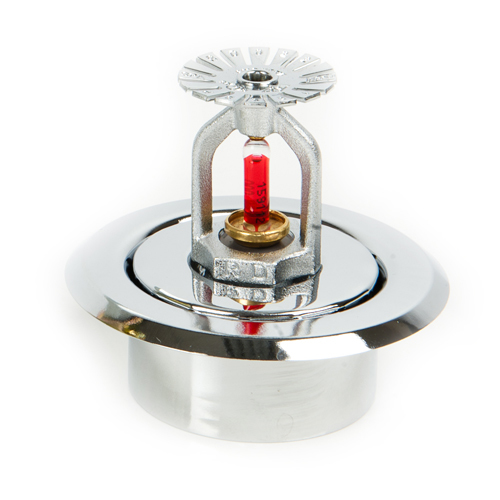

Fire Sprinkler rosette plate Price : 90.0 INR/Piece Minimum Order Quantity : 100 Application : Used with fire sprinkler heads for ceiling or wall installation, provides finished appearance and covers unsightly holes Working Temperature : Suitable for environments up to 68C 74C (typical for fire protection systems) Pressure : Compatible with standard fire sprinkler operating pressures (up to 12 bar / 175 psi) Features : Decorative, easy to install, conceals pipe penetrations Coating Type : Powdercoated, usually in white or chrome finish Max Flow Rate : Not applicable (flow rate is determined by sprinkler, not rosette) Operating Pressure : Matches the associated fire sprinkler head Installation Type : Surface mount (ceiling or wall), snapfit or pushon Diameter : Typically 2.5 to 3.5 inches (about 65 to 90 mm) Control Type : None (nonelectrical, noncontrolling part) Fire Extinguisher Type : N/A (accessory for fire sprinkler systems) Mounting Type : Ceiling or wallmounted Fire Class : Not classified; works as accessory for all fire classes with compatible sprinklers Coverage Area : N/A (coverage is determined by the fire sprinkler head) Connectivity Type : Nonelectrical Shape : Circular Technology : Passive mechanical accessory
